Chatwoot uses Rails Action Mailbox to receive inbound emails. Action Mailbox supports multiple “ingress” providers out of the box, and Chatwoot builds on top of that. This guide walks you through:
  • Choosing and configuring an inbound email (ingress) provider
  • Setting the required environment variables
  • Using Mailgun, SendGrid, Mandrill, and local relay servers (Exim, Postfix, Qmail, Postmark)
Supported ingress providers today:
  • Amazon SES
  • SendGrid
  • Mandrill
  • Mailgun
  • Exim
  • Postfix
  • Qmail
  • Postmark

​
1. Configure the ingress service

First, tell Chatwoot which inbound email service (ingress) you are using. This is done via the RAILS_INBOUND_EMAIL_SERVICE environment variable.
# Set this to the appropriate ingress service. Options:
# "relay"    for Exim, Postfix, Qmail, Postmark
# "mailgun"  for Mailgun
# "mandrill" for Mandrill
# "sendgrid" for SendGrid
# "ses" for Amazon SES
RAILS_INBOUND_EMAIL_SERVICE=relay
This value configures how Action Mailbox will authenticate and route inbound messages into Chatwoot.

​
Using a local relay (Postfix / Exim / Qmail / Postmark)

If you are using a local MTA (for example Postfix) for both inbound relaying and outbound email, and you do not want to use SMTP authentication (SASL) — which is common when the server only handles its own mail — you need to adjust your outbound SMTP configuration. By default, Action Mailer will try to use SMTP authentication if the following environment variables are present:
  • SMTP_AUTHENTICATION
  • SMTP_USERNAME
  • SMTP_PASSWORD
If you are sending mail through a local relay that does not require authentication:
  1. Remove or comment out these variables from your .env file.
  2. Ensure that your local MTA is correctly configured to send outbound mail.
⚠️ Important: Running your own mail server comes with deliverability and security responsibilities:
  • Many ISPs block or restrict email servers on their networks.
  • Configure proper DNS records (SPF, DKIM, DMARC) so that your emails are accepted by recipients and do not land in spam.

​
2. Configure ingress authentication

Next, set the corresponding credentials for the ingress provider you’re using.
# Use one of the following based on the email ingress service

# For SendGrid, Exim, Postfix, Qmail, or Postmark
RAILS_INBOUND_EMAIL_PASSWORD=

# For Mailgun
MAILGUN_INGRESS_SIGNING_KEY=

# For Mandrill
MANDRILL_INGRESS_API_KEY=
Only the relevant variable for your chosen provider needs to be configured.

​
3. Provider-specific configuration

​
Amazon SES

If you are using Amazon SES as your email provider, you have configure the ingress provider as ses and set the ACTION_MAILBOX_SES_SNS_TOPIC to the SNS topic ARN of your SES account. See more details here.

​
Mailgun

If you are using Mailgun as your email provider:
  1. In your DNS, configure the MX records for your domain to point to Mailgun.
  2. In the Mailgun dashboard, configure routing so that inbound emails are forwarded to:
https://example.com/rails/action_mailbox/mailgun/inbound_emails/mime
Replace example.com with the domain where your Chatwoot installation is hosted.

​

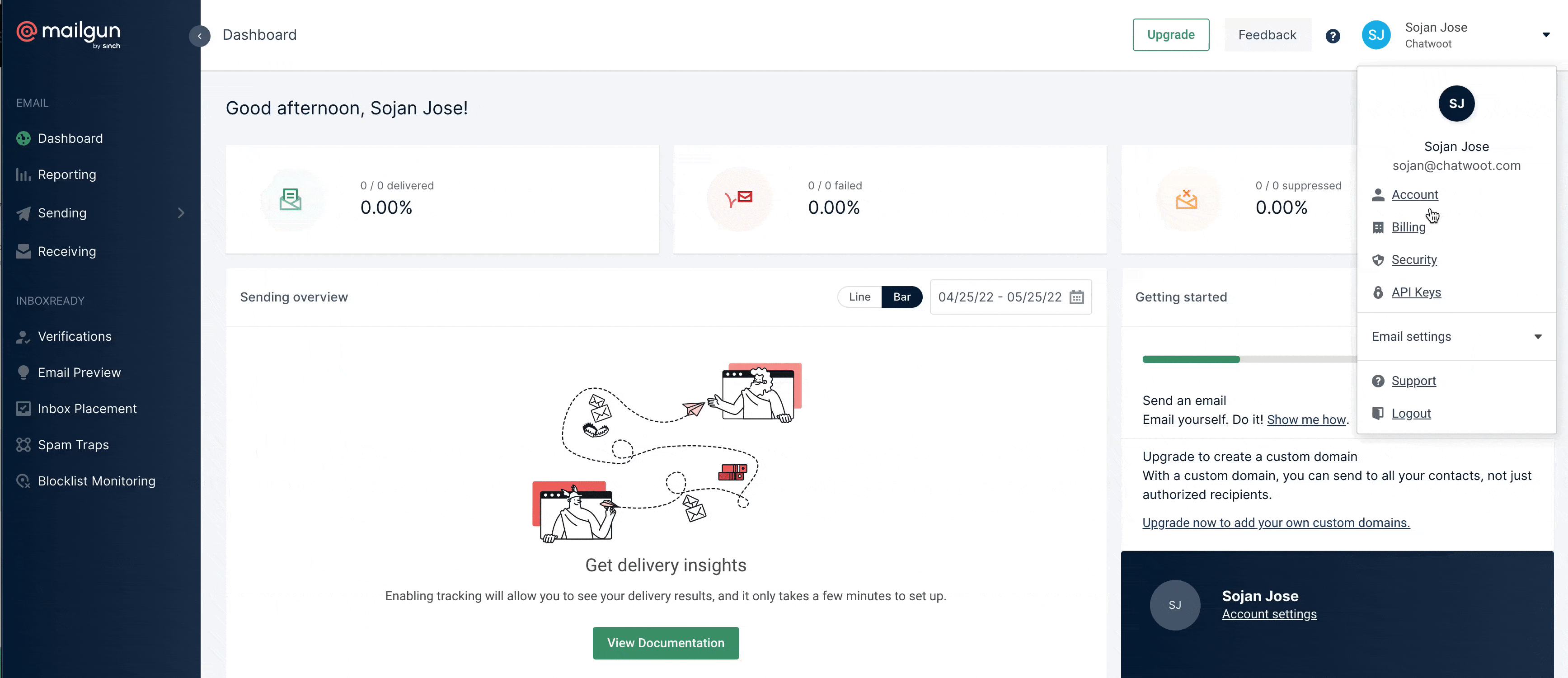

Getting the Mailgun ingress signing key

You can find the signing key in your Mailgun dashboard and set it as MAILGUN_INGRESS_SIGNING_KEY. mailgun-ingress-key

​
SendGrid

If you are using SendGrid:
  1. Configure MX records for your domain (your-domain.com) to point to SendGrid.
  2. In the SendGrid dashboard, set up Inbound Parse to forward inbound emails to the Action Mailbox endpoint.
Use the following pattern as the Inbound Parse URL:
https://actionmailbox:PASSWORD@example.com/rails/action_mailbox/sendgrid/inbound_emails
  • Replace PASSWORD with the value of RAILS_INBOUND_EMAIL_PASSWORD.
  • Replace example.com with your Chatwoot host.
✅ Required: When configuring the SendGrid Inbound Parse webhook, enable the option: “Post the raw, full MIME message”. Action Mailbox must receive the raw MIME message to correctly parse and process the email.
See a detailed guide on how to configure SendGrid Inbound Parse.

​
Mandrill

If you are using Mandrill as your email service:
  1. Configure your domain’s MX records to point to Mandrill.
  2. In the Mandrill dashboard, configure an inbound route that forwards emails to:
https://example.com/rails/action_mailbox/mandrill/inbound_emails
Replace example.com with the domain where your Chatwoot installation is hosted. Set MANDRILL_INGRESS_API_KEY with the appropriate API key from Mandrill.

​
4. IMAP via getmail

If you already have an IMAP mailbox (for example on your own mail server or with a provider that doesn’t directly support Action Mailbox), you can still feed emails into Chatwoot using getmail6 and the Action Mailbox HTTP ingress.

​
How Action Mailbox ingress works

Action Mailbox exposes HTTP endpoints for each ingress type. They are defined in the Rails source and can also be used directly. Example using the Rails rake task:
cat my_incoming_message | ./bin/rails action_mailbox:ingress:postfix \
  RAILS_ENV=production \
  URL=http://localhost:3000/rails/action_mailbox/relay/inbound_emails \
  INGRESS_PASSWORD=...
This imports the contents of my_incoming_message (an RFC 822 compliant message) into a Chatwoot instance running on localhost.

​
Calling the HTTP endpoint directly

Instead of using the Rake task, you can call the ingress HTTP endpoint directly via curl.
INGRESS_PASSWORD=...
URL=http://localhost:3000/rails/action_mailbox/relay/inbound_emails

curl -sS -u "actionmailbox:$INGRESS_PASSWORD" \
 -A "Action Mailbox curl relayer" \
 -H "Content-Type: message/rfc822" \
 --data-binary @- \
 $URL
This sends the raw message from stdin to the Action Mailbox relay endpoint.

​
Using getmail6 with IMAP

getmail6 can retrieve emails from an IMAP mailbox and pipe them into the curl script above. If the script is stored at /home/chatwoot/bin/import_mail_to_chatwoot, a minimal getmail configuration might look like this:
[retriever]
type = SimpleIMAPSSLRetriever
server = ...
username = ...
password = ...

[destination]
type = MDA_external
path = /home/chatwoot/bin/import_mail_to_chatwoot

[options]
verbose = 0
read_all = false
delete = false
delivered_to = false
received = false
message_log = /home/chatwoot/logs/import_imap.log
message_log_syslog = false
message_log_verbose = true

​
Scheduling mail retrieval

To continuously import mail into Chatwoot, you need to run getmail regularly. Common options:
  • Use cron to run getmail at a fixed interval (for example every minute).
  • For IMAP, you can use:
getmail --idle INBOX
This keeps a long-lived connection open and reacts to new mail immediately. You’ll need some supervision (systemd, runit, etc.) to handle restarts if the connection is interrupted.

​
5. Further reading

For more details on configuring and customizing ingresses, refer to the official Rails documentation:
